Design of Line Algorithms

Basic Math Review

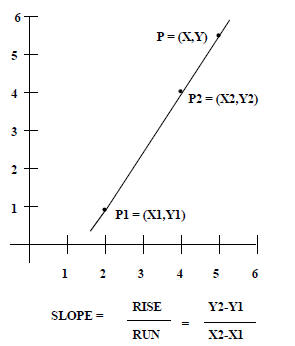

Slope- Intercept Formula For Lines

Given a third point on the line:
P = (X,Y)
Slope = (Y - Y1)/(X - X1)
= (Y2 - Y1)/(X2 - X1)
Solve for Y
Y
= [(Y2-Y1)/(X2-X1)]X
+ [-(Y2-Y1)/(X2-X1)]X1 + Y1
or
Y = mx + b

Other Helpful Formulas

Length of line segment between P1 and P2:
L = ¦ [ (X2-X1)2 + (Y2-Y1)2 ]
Midpoint of a line segment between P1 and P3:
P2 = ( (X1+X3)/2 , (Y1+Y3)/2 )
Two lines are perpendicular iff:
M1 = -1/M2

Parametric Form of the Equation
of a 2D Line

Given points P1 = (X1, Y1) and P2 = (X2, Y2)
X = X1 + t(X2-X1)
Y = Y1 + t(Y2-Y1)

When
t = 0 we get (X1,Y1)
t = 1 we get (X2,Y2)

As 0 < t < 1, we get all points between (X1,Y1) and (X2,Y2)

Basic Line Algorithm

Must:
1. Compute integer coordinates of pixels which lie on or near a line.
2. Be efficient.
3. Create visually satisfactory images.
• Lines should appear straight
• Lines should terminate accurately
• Lines should have constant density
• Line density should be independent of line length and angle
4. Always be defined.

Simple DDA Line Algorithm
{Based on the parametric equation of a line }

Procedure DDA(X1,Y1,X2,Y2 :Integer);
Var Length, I :Integer;
X,Y,Xinc,Yinc : Real ;

Begin
Length := ABS(,X2 - X1);
If ABS(Y2 - Y1) > Length Then
Length := ABS(Y2-Y1);
Xinc := (,X2 - X1)/Length;
Yinc := (Y2 - Y1)/Length;
X := X1;
Y := Y1;

For I := 0 To Length Do
Begin
Plot(Round(X), Round(Y));
X := X + Xinc;
Y := Y + Yinc
End {For}
End; {DDA}

Creates good lines, but problems ...

DDA Example

Render the line from (6,9) to (11,12):
Length := Max of (ABS(11-6), ABS(12-9)) = 5
Xinc := 1
Yinc := 0.6

Values computed are:
(6,9),
(7,9.6),
(8,10.2),
(9,10.8),
(10,11.4),
(11,12)

Fast Lines Using The Midpoint Method

Assumptions: line between points (0,0) and (a,b) with

Recall: y = mx + B (m is the slope, B is the y-intercept)
=>m = b/a and B = 0
=>y = (b/a)x + 0
=>f(x,y) = bx - ay = 0

Two choices for next pixel (T or S),
want the pixel closer to line!

Assume distance between
pixel centers is 1
Midpoint is (xi + 1,yi + 1/2)

e is difference between midpoint and where line crosses between
S and T

If e is positive , line crosses above the midpoint and is closer to T
If e is negative , line crosses below the midpoint and is closer to S
=> don’t need exact value of e

Fast Lines - The Decision Variable


Let di is known as the decision variable.
Since a ≥ 0, di has the same sign as e.

Algorithm:

If di ≥ 0 then
Choose T = (xi + 1, yi + 1) as next point

else
Choose S = (xi + 1, yi) as next point

Fast Line Algorithm

Calculate initial value for d0 directly from f(x,y) at (0,0):
d0 = f(0 + 1, 0 + 1/2) = b(1) - a(1/2) = b - a/2
Algorithm for a line from (0,0) to (a,b) in the first octant is:

x := 0;
y := 0;
d := b - a/2;
For i := 0 to a do Begin
Plot(x,y);
If d ≥ 0 Then Begin
x := x + 1;
y := y + 1;
d := d + b - a
End
Else Begin
x := x + 1;
d := d + b
End
End

The only non-integer value is a/2
How can we get rid of it?

Bresenham’s Line Algorithm

Generalize for lines beginning at points other than (0,0)

Begin {Bresenham for lines with slope between 0 and 1}
a := ABS(xend - xstart);
b := ABS(yend - ystart);
d := 2*b - a;
Incr1 := 2*(b-a);
Incr2 := 2*b;
If xstart > xend Then Begin
x := xend;
y := yend
End
Else Begin
x := xstart;
y := ystart
End;
For I := 0 to a Do Begin
Plot(x,y);
x := x + 1;
If d ≥ 0 Then Begin
y := y + 1;
d := d + incr1
End
Else
d := d + incr2
End {For Loop}
End; {Bresenham}

Optimizations

Detect cycles in the decision variable
=>correspond to a repeated pattern of pixel choices
Save pattern, reuse if a cycle is detected

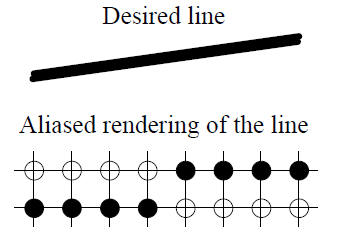

Antialiasing

Aliasing caused by finite addressability of CRT
Approximation of lines with discrete points can result in a
staircase appearance or "Jaggies"

Antialiasing - Solutions

Aliasing can be smoothed out by using higher addressability.
Problem: addressability usually fixed
Solution: intensity is variable, so use it
=> two adjacent pixels can give impression of point part way
between
=> perceived location of point dependent upon ratio of
intensities
An antialiased line has virtual pixels “located” at the proper
addresses

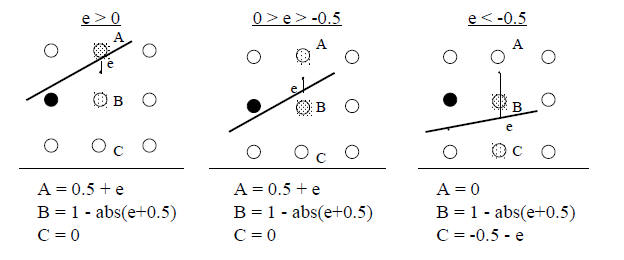

Antialiased Bresenham Lines

Use the distance (e = di/a) value to determine pixel intensities.
Three possible cases for the Bresenham algorithm:

What about color?
