Linear Equations Worksheet-Solutions

9. **Find a pair of points that together with the points (−2, 1) and (2,−2) are the vertices
of a square.

Answer Case 1: The segment is a side of a square.
The line through the points (−2, 1) and (2,−2) has the equation

and the distance between these points is

Each of the two points we are looking for needs to lie on a line parallel to the one
above and also on a line perpendicular to it and passing thru either (−2, 1) or (2,−2).
That is, we need to solve the systems

and

In the first system we substitute for (y' + 2) in the second equation.

(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)

Thus we obtain the solutions (5, 2) and (−1,−6). Following the same procedure
for the second system we obtain the solutions (−5,−3) and (1, 5). But our pair of
solutions must lie on a line parallel to the one thru (−2, 1) and (2,−2), i.e. a line
with slope m = −3/4 . So the possible solutions are the pairs of points (1, 5), (5, 2) and
(−5,−3), (−1,−6).

Case 2: The segment lies on the diagonal of a square.
In this case we will obtain a smaller square of side length We need to find the
other diagonal, i.e. the line perpendicular to the segment and passing
through its midpoint This line has the equation

and since half the diagonal is 5/2 , the two points we are looking for need to be
distance 5/2 away from the center of the square (0,−1/2 ) as well as the endpoints of
We need to solve the system

Omitting the algebra we obtain the points and and this is a third
possible solution.

10. ***Find all points such that together with the points (−2, 1) and (2,−2) they are the
vertices of a right triangle.

Answer We have two cases to consider. First, suppose that the line segment
is the leg of a right triangle. Then the third vertex lies on a line perpendicular
to the line thru (−2, 1) and (2,−2) and passing thru either (−2, 1) or (2,−2).
If (x', y') is the third vertex, then either

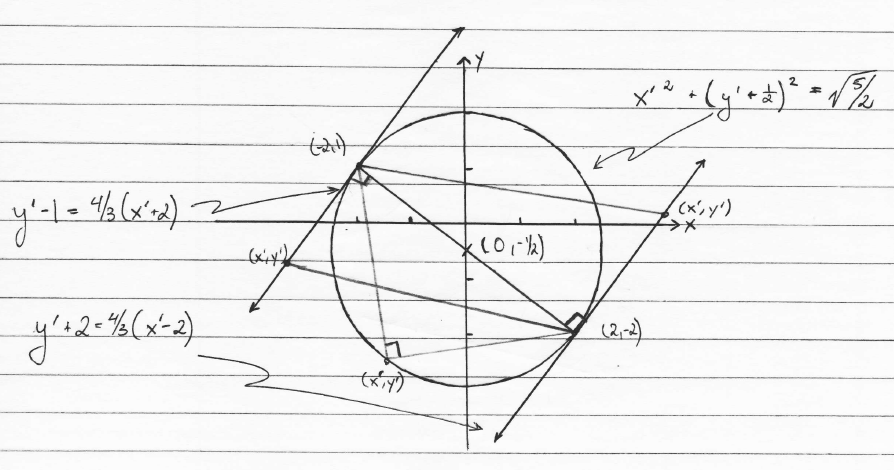

The second and more interesting case is that the line segment is the
hypotenuse of a right triangle. From elementary geometry we recall the Theorem
of Thales which states that the triangle formed by the diameter of a circle and line
segments joining an arbitrary point on the circle with the endpoints of the diameter
is a right triangle. Thus we need to find the equation of a circle whose diameter is
the line segment .

Using the distance formula we have the diameter

and the midpoint of our circle

This is the circle of radius 5/2 centered at the point (0,−1/2 ).
The answer is disappointing, because we do not explicitly give the coordinates of
a point
or points. In fact there are infinitely many possibilities, so listing them
amounts to writing a formula which computes them for us. We have a formula
for the coordinates of every point which solves the problem. If (x', y') is the third
vertex of the right triangle with vertices (−2, 1) and (2,−2), then either

or

or
